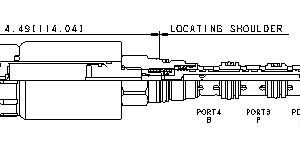

SUN HYDRAULICS 4-way, 2-position, solenoid-operated directional spool valve (DNDADNV224)
This solenoid-operated 4-way, 2-position cartridge is a direct-acting, balanced spool directional valve.
- The solenoid tube assembly is fatigue rated for 5000 psi (350 bar) service.
- This valve is direct actuated and requires no minimum hydraulic pressure for operation.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- On models equipped with the D or L control, the detent mechanism in the manual override is meant for temporary actuation. The D, L and T manual control assemblies have a mechanical life expectancy of approximately 7,000 cycles.
Flow – 40 lpm
Pressure – 350 bar
Coil Voltage – 24 VDC
Cavity – T- 31A
