SUN HYDRAULICS 4-way, 2-position, pilot-to-shift, detented, directional valve (DCEDXHN)

0 out of 5

6,854.40 ر.س

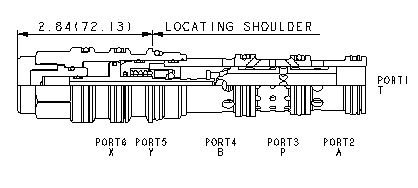

Two-position, detented, 4-way directional cartridges are 6-port directional valves that can be configured with up to 3 different spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.

  • All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
  • Leakage listed in technical data is for each path.
  • The pilot ports, 5 and 6, are positively sealed from the work ports.
  • Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
Availability: Available on backorder Categories: , , ,

Description

Flow – 160-240 lpm

Pressure – 350 bar

Cavity – T- 63A
