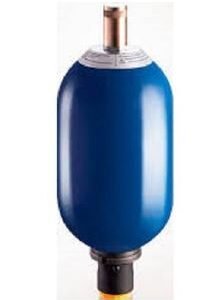

OLAER/PARKER Standard Bladder Accumulator (EHV50-330/90)
The EHV bladder accumulator offers a reliable and efficient solution for storing energy under pressure. Utilizing comprehensive tools and resources including an applications database, CAD/CAM, finite element analysis, reliability studies and simulation we have optimized the design and performance of the accumulator. Parker Olaer bladder accumulators are suitable for use in more than 35 countries (all hydraulic accumulators for Europe are CE marked) and they can meet an extensive range of international and industry approvals. The EHV Series bladder accumulator comes with an O-ring seal fluid port and 7/8” UNF gas connection as standard however other options are available.
Nominal Volume – 50 ltrs.
Operating Pressure – 330 bar
Maximum pressure differential (P2/P0): 4:1
Nitrogen gas pressure : The maximum pressure (PS) with nitrogen purity > 99.8% N2 class 2.8, is indicated on the accumulator.
Shell Material: Options include; alloyed steel, stainless steel, aluminium, titanium and composites.
Bladder Materials: Various bladder materials available which are compatible with a wide range of fluids and temperatures.
Anti-extrusion System: Fluid port.
