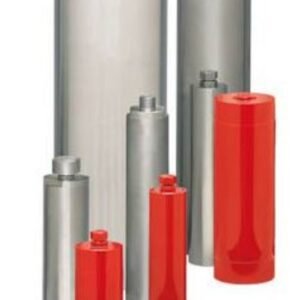

HYDAC Standard Piston Accumulator (SK 350 Series )

0 out of 5

Send Inquiry – Sales@hydronexgen.com

Fluids are practically incompressible and cannot therefore store pressure energy. The compressibility of a gas (nitrogen) is utilised in hydraulic accumulators for storing fluids. HYDAC piston accumulators are based on this principle. A piston accumulator consists of a fluid section and a gas section with the piston acting as a gas-proof separation element.The gas section is pre-charged with nitrogen. The fluid section is connected to the hydraulic circuit so that the piston
accumulator draws in fluid when the pressure increases and the gas is compressed. When the pressure drops, the compressed gas expands and forces the stored fluid into the circuit.

Availability: Available on backorder Categories: , ,

Description

Nominal Volume – 5 ltrs to 100 ltrs.

Operating Pressure – 350 bar

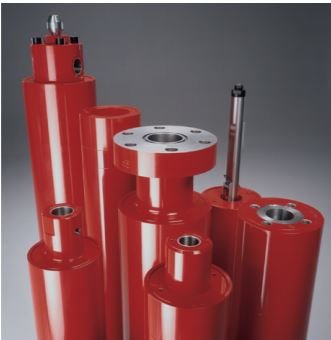

HYDAC piston accumulators consist of:

  • a cylinder with very finely machined
    internal surface.
  • end caps on the gas side and the oil
    side. Sealed with O-rings.
  • a floating steel or aluminium piston
    which can easily be accelerated due to
    its low weight.
  •  a sealing system adapted to the
    particular field of application.
